Brand Name : Fangda
Model Number : Metal Structured Packing
Certification : ISO-9001
Place of Origin : China Anping
MOQ : 1 Cubic Meter/Cubic Meters
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10000 Cubic Meter/Cubic Meters per Year
Delivery Time : Shipped in 1 week after payment
Packaging Details : Ton bag, Paper box, Wooden box.
Price : Consultation
Material : Stainless steel wire mesh
Application : Tower packing
ISO 9001:2008 : Certificate
Model : 250AX,500BX,700CY
Package Type : Ton bag,Paper box,Wooden box
Product Description

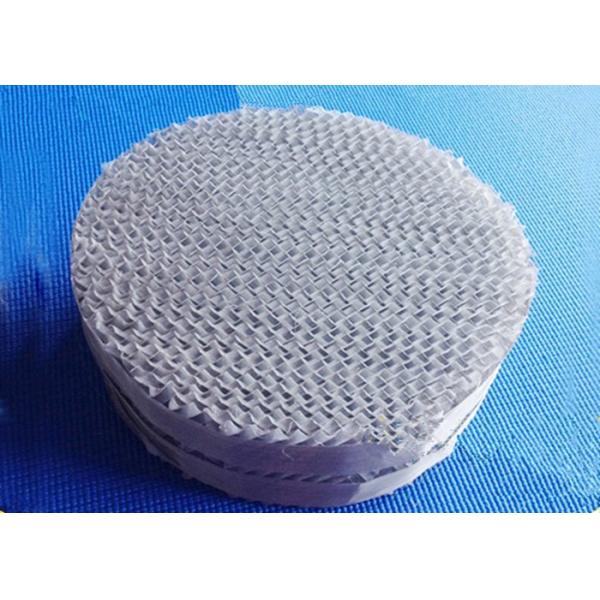

Metal mesh corrugated packing is the main form of the corrugated packing, which is made of metal mesh. Metal wire mesh corrugated packing pressure drop is high, the separation efficiency is very high, especially for precision distillation and vacuum distillation device, difficult to separate the system, heat-sensitive material distillation provides an effective means. Despite its high cost, but because of its excellent performance is still widely used.
Application
Fine chemical, flavors factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
Specification
Model | Specific surface(m2/m3) | Bulk density (kg/ m3) | Void ratio (%) | Obl. angle | Δ P (Pa/plate) | Theo. plate (piece/m) |
250AX | 250 | 125 | 95 | 300 | 100~400 | 2.5~3 |
500BX | 500 | 250 | 90 | 300 | 400 | 4~5 |
700CY | 700 | 350 | 85 | 450 | 600~700 | 8~10 |
Packaging
Package Type | Delivery time | Delivery time | Quality Insurance | Payment Terms | |
Ton bag | 20 GP | 40 GP | Within 7-14 days | Chinese National Standard; Offer quality assurance as request. | T/T, L/C, Paypal, West Union, Alibaba Trade Assurance |
Paper box | 20 m3 | 40 m3 | |||
Wooden box | 20 m3 | 40 m3 | |||
20 m3 | 40 m3 |
Product details
Company Information
Our company from China Anping, here is the hometown of screen. More than 35 years of experience in wire mesh production, with 5 years of export experience.
Fine Chemical Metal Structured Packing For Separation Thermally Sensitive Materials Images |
